product description

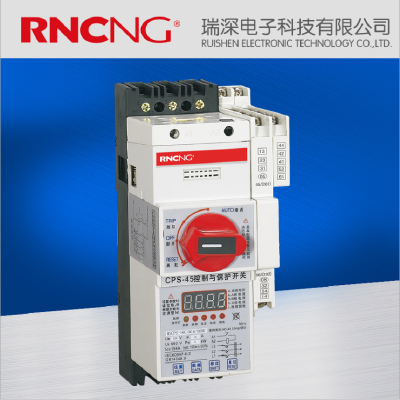

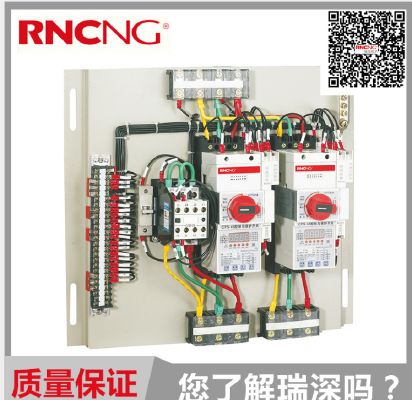

RSCPS series of control and protective switching devices (hereinafter referred to as RSCPS) mainly used in AC 50HZ (60HZ), rated working voltage up to 690V, rated current from the main 6.3A-125A, intelligent controller adjustable operating current from 0.4A-125A, control under motor power from 0.05KW-55KW power system switched on, carrying and breaking under normal conditions (including the provisions of overload conditions) current or voltage, and can turn, carry a certain time and breaking under the abnormal conditions (such as short circuit, undervoltage, etc.) current or voltage.
RSCPS modular structure of a single product that integrates traditional circuit breaker (fuse), contactors, overload (or over-voltage, under voltage) protective relay, starters, isolators, motor integrated protection and other major functions with remote automatic control and in situ direct human control, and electrical signal with a panel indicating alarm function, with over-voltage protection function, with the ability to phase-phase protection function, small size, high reliability, short-circuit high, arcing short distance, etc., having a good time with various characteristics of internal self – current protection characteristics (inverse long delay overload protection, short circuit protection short delay, instantaneous short circuit protection and fast transient short-circuit protection four protective feature), needed matching function and function modules, it can for a variety of power lines (such as frequent or infrequent start motor and distribution circuit load) to provide better control and protection functions and precise operation, to avoid unnecessary power outages and improve reliability.
- Place of Origin: China
- Brand Name: rncng
- Model Number: RSCPS-45
Scope
Precisely because RSCPS series of products with superior performance and advantages, particularly for the following situations or systems:
Power distribution and motor protection and control system metallurgy, coal, iron and steel, petrochemicals, ports, ships, railways and other areas
Motor Control Center (MMC) and distribution center
Power stations and substations
Port and rail system (such as airports, railway and highway passenger transport center, etc.)
Highway lighting, ventilation systems
Military station control and protection systems (such as border posts, radar stations, etc.)
Fire pump all occasions, fans, etc.
Modern architectural lighting, power conversion, pumps, fans, air conditioning, fire protection, lighting and other electrical control and protection series
hospital
Commercial buildings (such as shopping malls, supermarkets, etc.
Telecommunications room
Information processing center (such as municipal, banking, securities trading center)
Factory or workshop single motor control and protection systems
Remote Control Lighting System
2.RSCPS main and auxiliary circuits and the applicable use category code shown below:
RSCPS-45 use of the product category
3. This product complies with IEC60947-6-2 “Low-voltage switchgear and control equipment Part 6: Multiple function equipment Section 2: Control and protection of electrical switches” and GB14048.9 “low-voltage switchgear and control equipment multifunction devices (or equipment ) part 2: control and protective switching devices (or equipment) “standard.
Normal operating conditions
◎ ambient temperature: the upper limit of not more than 40 ℃, the lower limit of not less than -5 ℃, 24-hour average does not exceed 35 ℃. When the ambient temperature exceeds the above range, the user can consult with our company.
◎ elevation: the installation site altitude of not more than 2000 meters.
◎ atmospheric relative humidity: in the ambient temperature of 40 ℃ not more than 50%, at lower temperatures can have a higher relative humidity. Monthly average minimum temperature of 25 ℃, the average maximum relative humidity of 90% for the month, due to the humidity changes on the surface of condensation must be taken.
◎ Pollution degree: 3
◎ Installation category: Ⅲ class (690V system), Ⅳ (380V systems) Class
◎ control supply voltage fluctuation should be within the range (85% -110%) Us of
Model and meaning
The main technical parameters
1. The main circuit parameters
The main circuit is mainly composed of body and intelligent release, the two parts constituting the product can be applied RSCPS minimum configuration.
Body rated current In, thermal current Ith, rated insulation voltage UI, rated operating voltage Ue table：
| Inm | In（A） | Ith（A） | UI（V） | Rated frequency（HZ） | Ue（V） |
| 45 | 6.3、12、16、18、32、45 | 45 | 690 | 50 | 380 /690 |
| 125 | 12、16、18、32、45、63、100、12 | 125 |
Optional Ie rated operating current range or power control range of intelligent controller as follows:
2.RSCPS protection characteristic curve
Operating characteristics: 3. For motor control (AC-42, AC-43, AC-44 applicable categories)
| NO. | Multiples of setting current Ir1 | Ie with time-related conventions | Reference temperature |
| 1 | 1.0 | 2hNot trip | 40℃ |
| 2 | 1.2 | Within 2h trip | |
| 3 | 1.5 | 2minTrip within | |
| 4 | 7.2 | 4-10sTrip within |
Operating characteristics: 4. For the distribution line load (AC-40, AC-41 use category)
| Applicable category | Multiples of setting current Ir1 | Ie with time-related conventions | Reference temperature | ||
| A | B | Ie<63A | Ie≧63A | 30℃ | |
| AC-40、AC-41 | 1.05 | 1.30 | 1 | 2 | |
5. The main technical parameters of intelligent release
(1) Start Delay: In RSCPS start time, only the phase, phase failure, overvoltage, undervoltage, under current, short circuit, leakage and phase imbalance protection, in order to avoid large current RSCPS start and overcurrent protection; setting time for the selection of (1 to 99 seconds) between.
(2) overvoltage and undervoltage protection: only the auxiliary power supply voltage protection to ensure normal operation of the coil. Overvoltage protection: When the auxiliary power supply voltage exceeds the set value (factory setting at 120% Us), the operating time of ≦ 10 s; voltage protection: When the auxiliary voltage is lower than the current setpoint (factory setting at 75% Us) , operation time ≦ 10 seconds.
(3) inverse long delay overload protection: the user according to the load current I set intelligent release rated current Ie, the load current I between 80 ~ 100% Ie, the operation time is set according to the load characteristics, overcurrent multiples and operation time characteristics below. Inverse time overload long delay protection characteristic curve factory settings in F2.
(4) under current protection: In accordance with the smallest ratio of current and rated current to determine whether to start under current protection (factory set at 60%), can not be unloaded motor protection; the user does not have avoided according to the load current I setting RSCPS intelligent release operating current Ie, causing the motor is not within the scope of RSCPS. When the current is less than under current protection set value, the action time
(5) three-phase unbalanced (off phase) protection: phase unbalance protection is based on the ratio of the difference between the maximum and minimum current and maximum current to determine whether the starting phase unbalance (off phase) protection. Unbalance ratio = (maximum current – the minimum current) / maximum current. When any two-phase current values differ by more than 20 to 75% (factory set at 60%), Operate time
(6) stall protection: Stall protection is to prevent the motor drive apparatus severe blockage or motor running overload and heat damage to the motor, generally based on the current reaches the set value to determine whether to activate the stall protection. When the current reaches more than 8 times the rated current,
(7) short circuit short delay protection: When the current reaches more than 8 times the rated current, the action time ≦ 0.2 seconds.
6. making, carrying and breaking short-circuit current capability
| Ue（V） | Current body In（A） | Rated short-circuit breaking capacityIcs （KA） | The expected convention test currentIcr （A） | Additional segments abilityIc （A） | ||
| Stype | Ntype | Htype | ||||
| 380 | 12、16、18、32、45、63、100、125 | 35 | 50 | 80 | 20×100 （which is2000） | 16×100×0.8 （which is1280） |
| 690 | 10 | 10 | 10 | |||
7. The main electrical circuit is turned on and analysis of the life and times
| Ue（V） | Use category | Electrical life | On condition | Additional segments abilityIc （A） | |||||
| The new test | Rated operating After the short circuit test | The expected convention After the short circuit test | I/Ie | U/Ue | Ic/Ie | Ur/Ue | cosΦ | ||
| 380 | Ac-43 | 100×104 | 1.5×104 | 3×104 | 6 | 1 | 1 | 0.17 | 0.35 |
| AC-44 | 2×104 | 6 | 1 | ||||||
| 690 | AC-44 | 1×104 | |||||||
8. The mechanical life of the body and its modules
| Frame degree code and module name | Mechanical life |
| main body | 500×104 |
| Auxiliary contacts | |
| Signal alarm auxiliary contacts | 1×104 |
| Operating mechanism |
Product runs or sets
1. Display and Key Description
RSCPS should be preceded with the power switch on the control and protection in accordance with the load current of the circuit long delay and the short time delay setting current set at a desired value. After power-lit digital display auxiliary current and voltage monitoring cycle to the A, B, C three-phase circuit operating current value.
2. Run Operation
After (1) RSCPS access to the power supply, LED displays the voltage value, can double as a voltmeter, after three show the voltage.
(2) RSCPS at runtime doubles as ammeter function cycle phase current operation. Press the “shift key” to show the orientation phase A, B phase, C, L (leakage) current operation; press the “reset button” to restore the operation of three-phase current cycle.
(3) Troubleshooting: load running RSCPS press the “key data” and the fault type symbol control panel, you can view the first 3 faults; the display to indicate voltage value out of the RSCPS troubleshooting, put into normal operation status monitoring; or restart RSCPS exit fault finding.
3. Protection parameter setting
When the motor is up and running, press the Set button is invalid;
Load operation RSCPS, press “Settings button” to select the type of setting, followed by “shift key”, select the data shift, press the “key data”, data modification;
A parameter setting is completed, press the “set key” to enter the next setting state, until the end;
The option should not need to give up setting all parameters have been set, exit the setting mode, the display voltage.
4. The order parameter setting operation
