- Place of Origin: zhejiang
- Brand Name: rncng
- Model Number: RCQ1

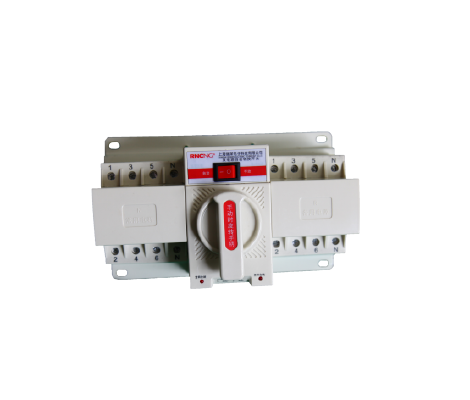

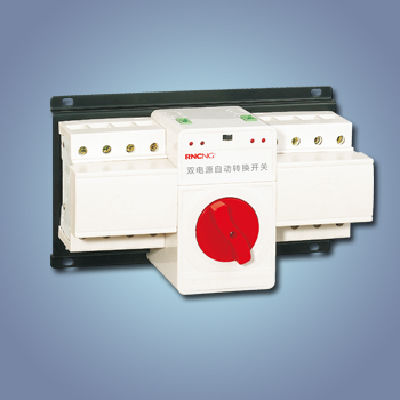

RCQ1 series dual power automatic transfer switching equipment (hereinafter referred to as switch) for AC 50Hz or 60Hz AC, rated working voltage of 380V rated current 6-1250A the dual power supply system. In the normal power supply fails, the switch can perform backup power generator or automatic conversion, in order to ensure reliability of supply and security, selectivity between the two power conversion required. Products with short circuit, overload, under voltage, voltage protection function, but also has fire, double points and closing signal output function. Especially suitable for the need for office buildings, shopping malls, banks, railway stations, hospitals and high-rise buildings to install fire lighting circuit requirements.
Product complies with GB / T14048.11 standard and IEC 60947-6-1
◎ the ambient air temperature: up to 40 ℃, lower limit of -5 ℃, 24-hour average does not exceed 35 ℃.
◎ installation site altitude does not exceed 2000m.
◎ atmospheric relative humidity in the ambient air temperature is 40 ℃ not more than 50%, at lower temperatures can have a higher humidity; wettest month of the monthly average minimum temperature of 25 ℃, the average of the maximum relative humidity of 90%, and taking into account changes in humidity Cream surface of the product, should take special measures.
◎ Pollution level Ⅲ.
◎ site without running strong vibration and shock, corrosion and damage the insulation of harmful gases, no serious dust, non-conductive particles and explosive hazardous substances, no strong electromagnetic interference.
1.Reasonable structure, smallest, beautiful appearance, with a protective cover, power supply more secure and reliable.
2.Protection function, short circuit, overload, phase, undervoltage protection.
3.And EPS fire power interface, DC12 ~ 24V can be a reliable long-distance double points.
4.Noise-free operation, energy saving, easy to install, easy to operate, reliable and stable performance.
5.High-performance single-chip control system, large-screen backlit LCD display.
6.Anti-interference ability and high accuracy.
7.Good corrosion resistance, reliable power supply.
- Place of Origin: zhejiang
- Brand Name: rncng
- Model Number: RCQ1
